SMT line machine with warranty
,SCIENSCOPE VIEW X2100 SMT machine
,SMT line equipment for electronics
-
ブランド名SCIENSCOPE
-
モデル番号X2100を見る
-
最小注文数量1台または混合注文も承ります
-
価格交渉可能
-
パッケージの詳細標準の輸出用ボックスと頑丈な硬材パッケージの両方がオプションです
-
受渡し時間5～8営業日
-
支払条件L/C、D/A、D/P、T/T、ウェスタンユニオン、マネーグラム

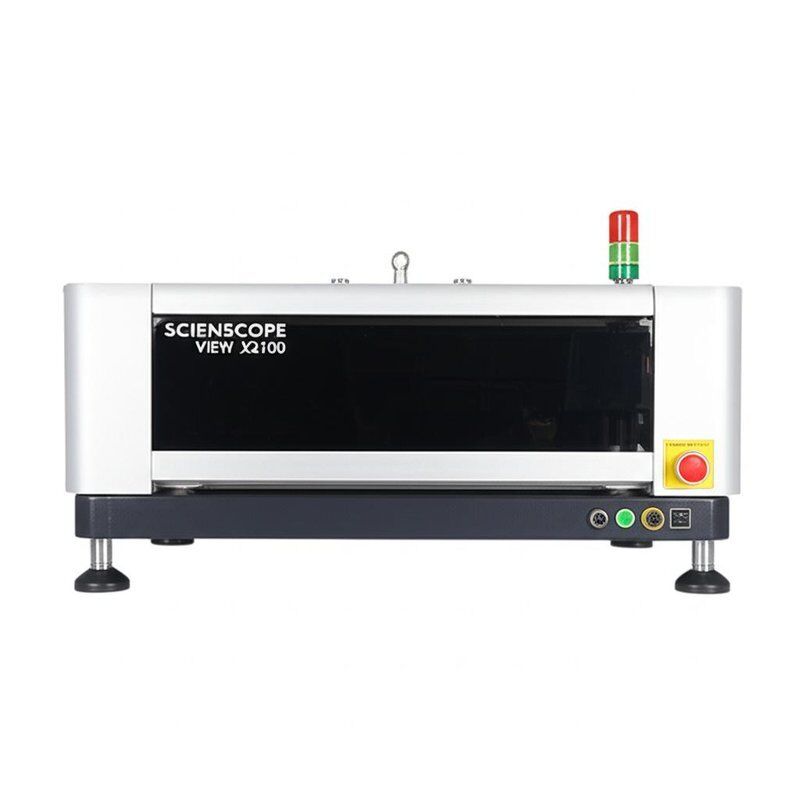

SCIENSCOPE VIEW X2100
SCIENSCOPE VIEW X2100
The Scienscope VIEW X2100 SMT serves as the all-seeing eye for electronics manufacturing, providing comprehensive inspection capabilities to ensure absolute perfection of every electronic component produced.
This sophisticated X-ray inspection system employs advanced X-ray technology to examine the intricate world of circuit boards (PCBs) and microchips. Unlike traditional methods, the Scienscope VIEW X2100 SMT performs non-destructive inspections, allowing for repeated testing and analysis while maintaining the highest levels of quality and reliability.
SPECIFICATIONS
| Whole Machine | ||
|---|---|---|
| Model | View X2100 | |
| Weight | 1550 KG | |
| Size | 1510x1530x1870 (mm) | |
| Power Supply | AC110-220V VAC50-60HZ | |
| Air Supply | Not Required | |
| Total Power | 1.5 KW | |
| X-ray System | |
|---|---|
| X Tube Max Voltage | Closed tube 100KV |
| X Tube Angle | 80° |
| X Tube Current | 0.15mA |
| X Tube Focal Spot | 5μm |
| Imaging | |
|---|---|
| Main Camera Type | HD digital flat panel |
| Effective Imaging Area | 146*115mm |
| Pixels | 96μm |
| Main Camera Resolution | 1536*1184 |
| External Function | |
|---|---|
| Barcode | Optional |
| Link MES System | Optional |
| Safety | |
|---|---|
| Auto Safety Access Control | The door can't open while the X-ray is on (magnetic induction) |
| Radiation Safety Standard | ≤1μsv/h |
HIGHLIGHTS
The Scienscope VIEW X2100 SMT is designed to be more than just a powerful inspection tool; it's incredibly user-friendly and efficient, serving as an indispensable assistant in manufacturing operations.
Handles Large and Complex Assemblies
Accommodates large products up to 650x500 mm with spacious trays designed for even the most intricate circuit boards.
Unrivaled Penetration Power
Equipped with a high-intensity 100 kV light source that penetrates dense materials to reveal hidden defects and anomalies.
Streamlined Operation for Maximum Productivity
Intuitive operation with intelligent software that remembers settings and one-click start functionality powered by sophisticated CNC detection programs.
STRUCTURAL AND DIMENSIONAL DESIGN
Built for long-term reliability and performance, the Scienscope VIEW X2100 SMT withstands demanding manufacturing environments with exceptional reliability and long service life. Its robust design and high-quality components ensure years of trouble-free operation.
The Scienscope VIEW X2100 SMT represents a strategic investment that empowers businesses to elevate quality control processes, reduce manufacturing costs, and deliver consistently superior products to customers.
WHY CHOOSE US
As a direct supplier of SCIENSCOPE VIEW X2100 equipment, we offer complete control over our supply chain, ensuring the best possible prices without sacrificing quality. Our SMT machinery is built to last using high-quality components and rigorous testing procedures.
With buyers from numerous countries already benefiting from our equipment, you can be confident in making a sound investment. From initial consultation to ongoing support, we're committed to providing a seamless experience.
We've Earned the Trust of People Worldwide!
Trust is the cornerstone of our global reputation, allowing us to forge strong, lasting relationships with clients from every corner of the world. This trust drives our success and is why customers continue to choose us as their preferred partner.
Professional Training for Peak Performance
To ensure seamless operation and provide exceptional assistance to our valued customers, we are committed to ongoing professional training. This equips our team with the knowledge and skills to efficiently manage operations and expertly address all SMT machinery inquiries.
About Us
We're dedicated to ensuring your SCIENSCOPE VIEW X2100 machinery orders are handled with care and precision, arriving quickly and in top condition. This commitment reflects our core values of quality, reliability, and customer satisfaction.
Looking ahead, we are driven to become a top global supplier of SMT Machinery, constantly innovating and striving to exceed expectations in every aspect of our business. We want to be known not just for our products, but for our unwavering dedication to our customers' success.
