SMT line machine with warranty
,SCIENSCOPE VIEW X2100 SMT machine
,SMT line equipment high performance
-
ブランド名SCIENSCOPE
-
モデル番号X2100を見る
-
最小注文数量1台または混合注文も承ります
-
価格交渉可能
-
パッケージの詳細標準の輸出用ボックスと頑丈な硬材パッケージの両方がオプションです
-
受渡し時間5～8営業日
-
支払条件L/C、D/A、D/P、T/T、ウェスタンユニオン、マネーグラム

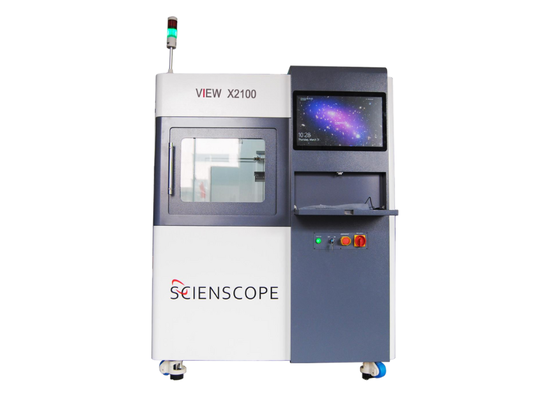

SCIENSCOPE VIEW X2100
The Scienscope VIEW X2100 SMT serves as a comprehensive inspection solution for electronics manufacturing, providing non-destructive examination of circuit boards and microchips. This sophisticated X-ray system enables precise internal inspection without damaging delicate components, allowing for repeated testing and analysis to ensure the highest quality standards.
| Whole Machine | ||
|---|---|---|
| Model | View X2100 | |
| Weight | 1550 KG | |

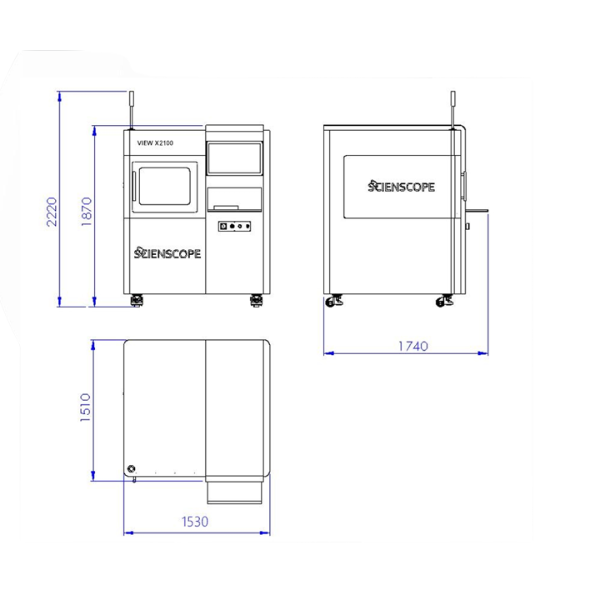

| Size | 1510x1530x1870 (mm) | |
| Power Supply | AC110-220V VAC50-60HZ | |
| Air Supply | Not Required | |
| Total Power | 1.5 KW | |
| X-ray System | ||
| X Tube Max Voltage | Closed tube 100KV | |
| X Tube Angle | 80° | |
| X Tube Current | 0.15mA | |
| X Tube Focal Spot | 5μm | |
| Imaging | ||
| Main Camera Type | HD digital flat panel | |
| Effective Imaging Area | 146*115mm | |
| Pixels | 96μm | |
| Main Camera Resolution | 1536*1184 | |
| External Function | ||
| Barcode | Optional | |
| Link MES System | Optional | |
| Safety | ||

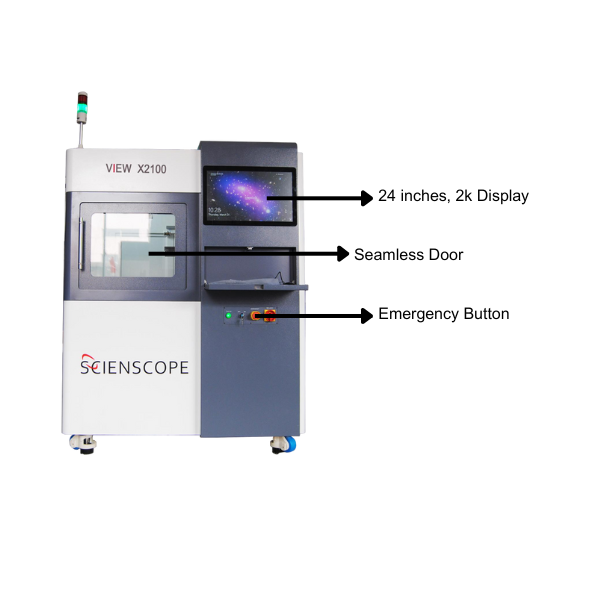

| Auto Safety Access Control | The door can't open while the X-ray is on (magnetic induction) | |
| Radiation Safety Standard | ≤1μsv/h | |

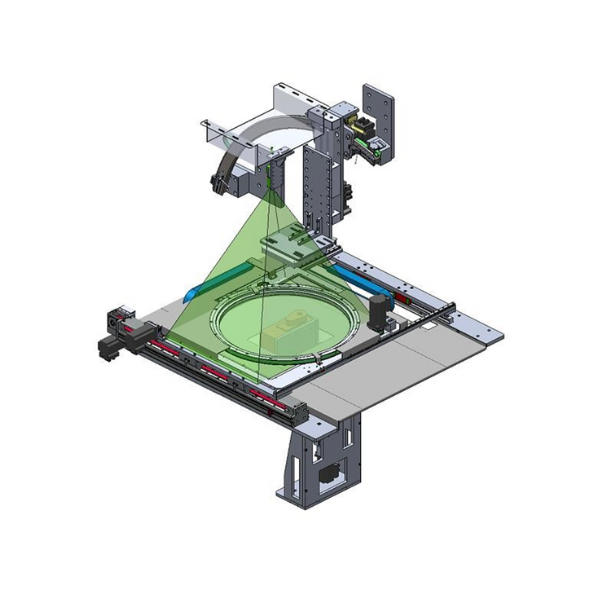

- Handles Large and Complex Assemblies: Accommodates products up to 650x500 mm with spacious trays designed for intricate circuit boards.
- Unrivaled Penetration Power: High-intensity 100 kV light source penetrates dense materials to reveal hidden defects and anomalies.
- Streamlined Operation: Intuitive interface with intelligent software, one-click start functionality, and CNC detection programs for maximum productivity.
Built for demanding manufacturing environments, the Scienscope VIEW X2100 SMT offers exceptional reliability and long service life. The robust design and high-quality components ensure years of trouble-free operation, providing superior return on investment.
This strategic investment empowers manufacturers to elevate quality control processes, reduce manufacturing costs, and deliver consistently superior products to customers.
