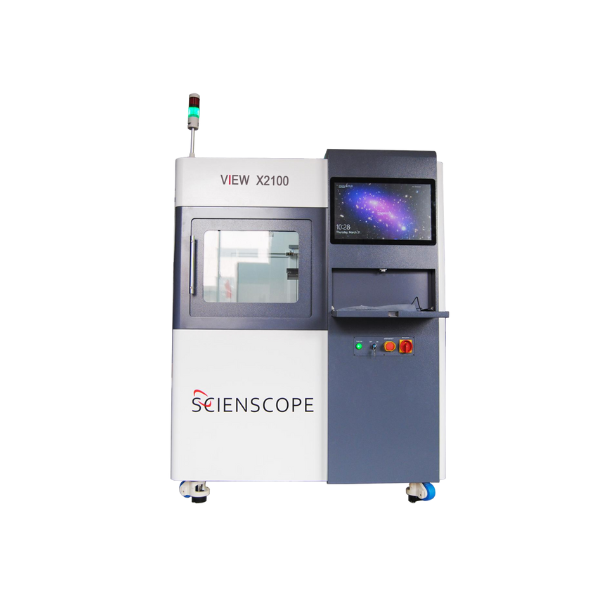

SCIENSCOPE X-RAY VIEW X2100
SCIENSCOPE X-RAY VIEW X2100
The SCIENSCOPE X-RAY VIEW X2100 serves as the all-seeing eye for electronics manufacturing, ensuring absolute perfection of every electronic component produced. This sophisticated X-ray inspection system utilizes advanced X-ray technology to inspect circuit boards (PCBs) and microchips without causing damage, offering precision measurement and comprehensive inspection capabilities.
Technical Specifications
| Whole Machine | ||
|---|---|---|
| Model | View X2100 | |
| Weight | 1550KG | |

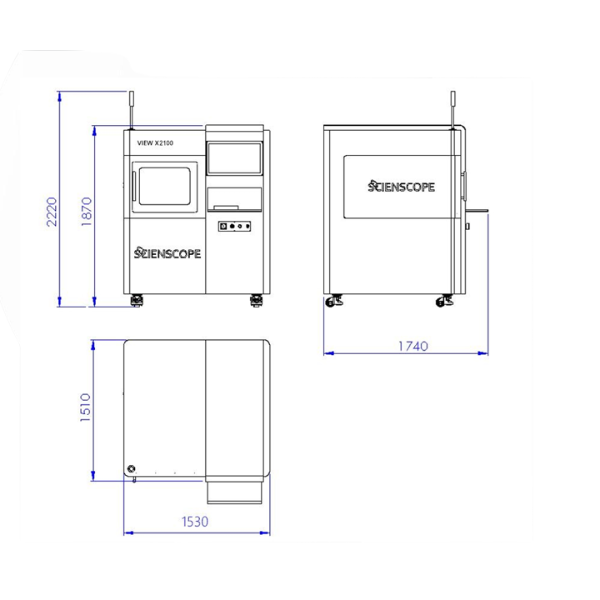

| Size | 1510x1530x1870(mm) | |
| Power Supply | AC110-220V VAC50-60HZ | |
| Air Supply | Not Required | |
| Total Power | 1.5KW | |
| X-ray System | ||
| X Tube Max Voltage | Closed tube 100KV | |
| X Tube Angle | 80° | |
| X Tube Current | 0.15mA | |
| X Tube Focal Spot | 5μm | |
| Imaging | ||
| Main Camera Type | HD digital flat panel | |
| Effective Imaging Area | 146*115mm | |
| Pixels | 96μm | |
| Main Camera Resolution | 1536*1184 | |
| External Function | ||
| Barcode | Optional | |
| Link MES System | Optional | |
| Safety | ||
| Auto Safety Access Control | The door can't open while the X-ray is on (magnetic induction) | |
| Radiation Safety Standard | ≤1μsv/h | |
Key Features
The SCIENSCOPE X-RAY VIEW X2100 is designed to be more than just a powerful inspection tool; it's an incredibly user-friendly and efficient assistant in your manufacturing operations.
- Handles Large and Complex Assemblies: Accommodates large products up to 650x500 mm with spacious trays designed for even the most intricate circuit boards.
- Unrivaled Penetration Power: Equipped with a high-intensity 100 kV light source that penetrates dense materials to reveal hidden defects and anomalies invisible to conventional inspection methods.
- Streamlined Operation for Maximum Productivity: Features intelligent software with memory settings, one-click start functionality, and sophisticated CNC detection programs for minimal training requirements and maximum efficiency.
Structural and Dimensional Design
Built for long-term reliability and performance, the SCIENSCOPE X-RAY VIEW X2100 withstands demanding manufacturing environments with exceptional reliability and long service life. Its robust design and high-quality components ensure years of trouble-free operation, providing superior return on investment.
The SCIENSCOPE X-RAY VIEW X2100 is more than just a machine; it's a strategic investment that empowers you to elevate quality control processes, reduce manufacturing costs, and deliver consistently superior products to your customers.
About Our Company
Shenzhen CN Technology Co. Ltd. is a manufacturer, distributor, and global trader (import/export) established in 2005. We serve markets across North and South America, Europe, Asia, the Middle East, Africa, and Oceania. Our brand employs 100-120 people and generates $3-5 million in annual sales, with 70-80% of our products being exported.

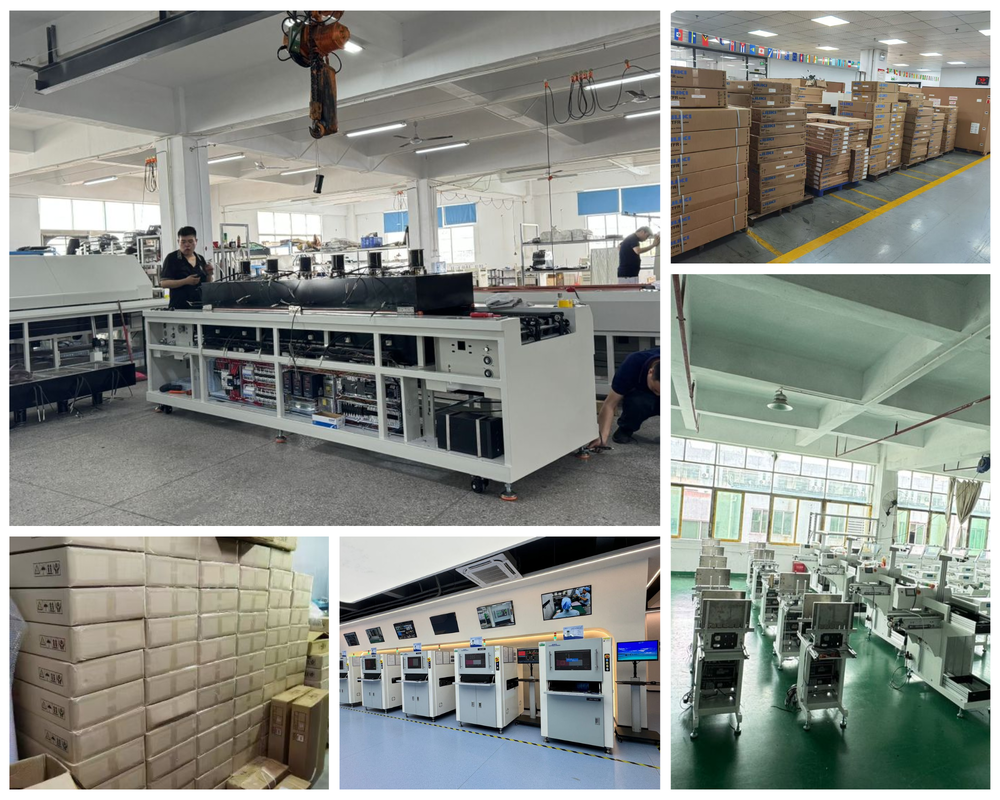

Our Production Line
