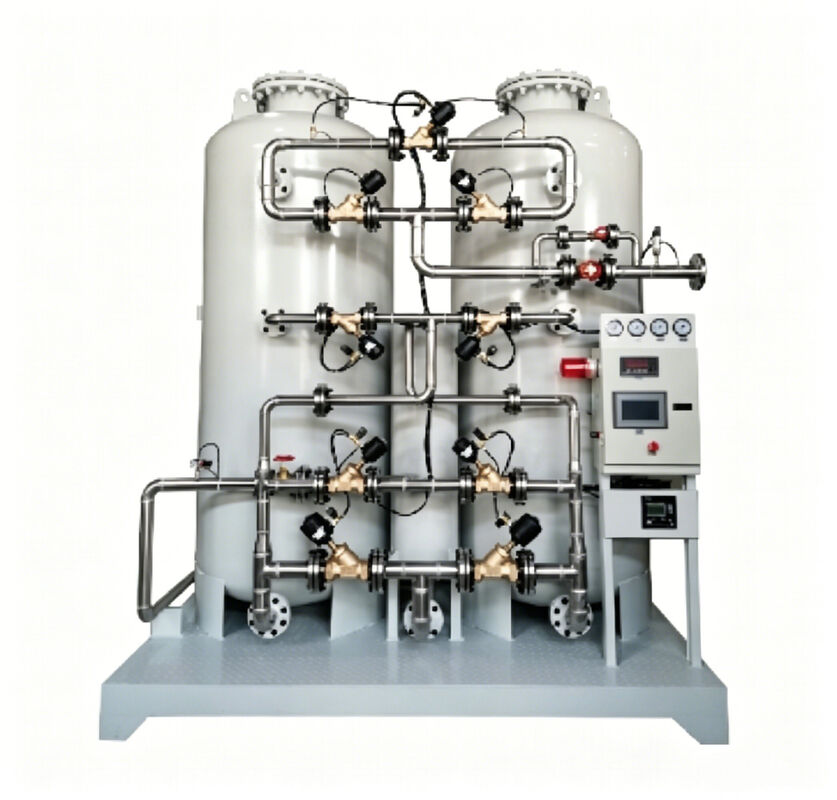

Unenclosed PSA Nitrogen Generator

The PSA Nitrogen Generator operates on the Pressure Swing Adsorption principle, utilizing carbon molecular sieve as the adsorbent. Under specific pressure conditions, nitrogen is separated from air as purified compressed air passes through adsorption vessels via compression and decompression cycles. Due to oxygen molecules moving faster than nitrogen molecules through the carbon molecular sieve, oxygen is adsorbed first while nitrogen is collected to produce nitrogen gas. The carbon molecular sieve then undergoes decompression to release oxygen molecules in a process called regeneration. The system typically employs two towers - one for production and one for regeneration - controlled by PLC and valves for continuous, uninterrupted operation.

What is the highest purity of nitrogen that can be achieved?
The equipment can produce nitrogen gas with purity up to 99.999%, adjustable according to requirements.

What is the principle of nitrogen production used?
Pressure Swing Adsorption (PSA) technology utilizing carbon molecular sieve for air separation.

Is the gas supply pressure of the equipment stable?
Stable voltage output and consistent gas production pressure ensure continuous production requirements.

Can the equipment run continuously throughout the day?
Supports 24-hour continuous operation with full automation and unattended operation capability.

Is the energy consumption high during operation?
Low overall energy consumption with on-site nitrogen production effectively reducing gas costs.

Will there be fluctuations in the purity of the produced gas?
Stable voltage and current systems ensure long-term operation with uniform and stable purity.

Is installation of open models complicated?
Simple rack structure with minimal space requirements, easy to disassemble, repair, and maintain.

What is the service life of core components?
High-quality carbon molecular sieve standard equipment is wear-resistant, durable, and long-lasting.

Does daily maintenance require frequent operations?
Simple daily maintenance with regular basic inspections and low failure rate.

Which industries are suitable for use?
Suitable for high-end applications including laser cutting, electronic semiconductors, lithium batteries, food preservation, and chemical anti-corrosion.

Can it be used under harsh working conditions?
Protective design ensures safe and reliable operation in conventional industrial production environments.

What causes purity not meeting standards?
Typically due to molecular sieve loss, abnormal air pressure, or excessive intake impurities - restorable through investigation.

Is the equipment operating with loud noise?
Noise reduction design throughout the machine results in low operating noise and comfortable working environment.

This machine employs PSA pressure swing adsorption nitrogen production technology capable of generating up to 99.999% ultra-high purity nitrogen gas. Purity, pressure, and flow rate are adjustable as needed. The open rack structure is compact, facilitating easy installation and maintenance. Equipped with high-quality carbon molecular sieves, the system features low energy consumption and long service life. Fully automated operation supports continuous 24-hour gas production with multiple safety protections, low noise operation, and reliable performance. Widely applicable in laser processing, electronic semiconductors, lithium-ion new energy, food and pharmaceutical, chemical heat treatment, and other fields. On-site nitrogen production effectively reduces gas costs while meeting various high-end production gas supply requirements.
